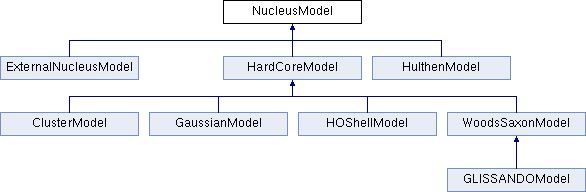

Inheritance diagram for NucleusModel:

Public Member Functions
	NucleusModel ()

virtual	~NucleusModel ()
	Virtual destructor.

void	initPtr (int idIn, bool isProjIn, Info &infoIn)
	Init method. More...

virtual bool	init ()

virtual bool	initGeometry ()

void	setParticle (int idIn)
	Set the particle id of the produced nucleus. More...

virtual void	setPN (const Vec4 &pNIn)
	Set (new) nucleon momentum.

virtual void	setMN (double mNIn)
	Set (new) effective nucleon mass.

virtual Particle	produceIon ()
	Produce an instance of the incoming nucleon. More...

virtual vector< Nucleon >	generate () const =0

int	id () const
	Accessor functions.

int	I () const

int	A () const

int	Z () const

int	L () const

double	R () const

int	idN () const

const Vec4 &	pN () const

double	mN () const

Static Public Member Functions
static shared_ptr< NucleusModel >	create (int model)
	NucleusModel base class.

Protected Attributes
bool	isProj
	Projectile or target.

int	idSave
	The nucleus.

int	ISave
	Cache information about the nucleus.

int	ASave

int	ZSave

int	LSave

double	RSave
	The estimate of the nucleus radius.

double	mSave {}
	The mass of the nucleus and its nucleons.

Vec4	pNSave {}
	The nucleon beam momentum.

double	mNSave {}
	The effective nucleon mass.

int	idNSave = 2212

Info *	infoPtr
	Pointers to useful objects.

Settings *	settingsPtr

Rndm *	rndmPtr

Logger *	loggerPtr

Detailed Description

This class generates the impact parameter distribution of nucleons in a nucleus.

Constructor & Destructor Documentation

NucleusModel ( )

inline

Default constructor giving the nucleus id and an optional radius (in femtometer).

virtual vector<Nucleon> generate ( ) const

pure virtual

Generate a vector of nucleons according to the implemented model for a nucleus given by the PDG number.

Init method.

Initialise base class, passing pointers to important objects.

Particle produceIon ( )

virtual

Produce an instance of the incoming nucleon.

Produce a proper particle corresponding to the nucleus handled by this NucleusModel.

void setParticle ( int idIn )

Set the particle id of the produced nucleus.

Set the id of the produced particle.

The documentation for this class was generated from the following files:
